Free Dec-2025 OGA-031 Certification Sample Questions certification Exam [Q28-Q43]

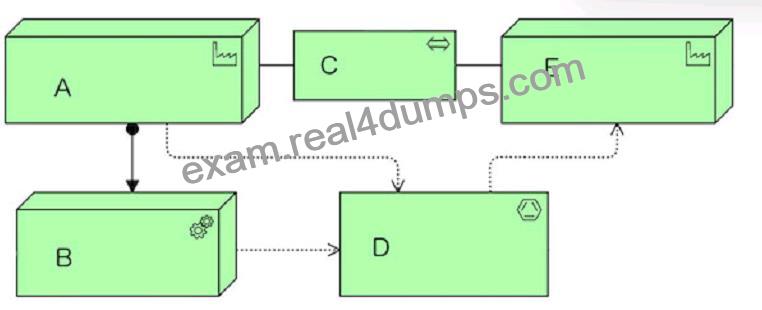

The diagram uses the ArchiMate notation for physical elements, which are used to model physical concepts like machines, physical installations, materials, and distribution networks. A is an equipment element, which represents a physical machine, tool, or instrument that can create, use, store, move, or transform materials. B is a material element, which represents tangible physical matter or energy. C is a distribution network element, which represents a physical network used to transport materials or energy.
References: ArchiMate Physical elements1; ArchiMate 3.2 Specification, Chapter 9: Physical Elements2; Introduction to ArchiMate 3.0 (Part 4 Physical Elements)3.

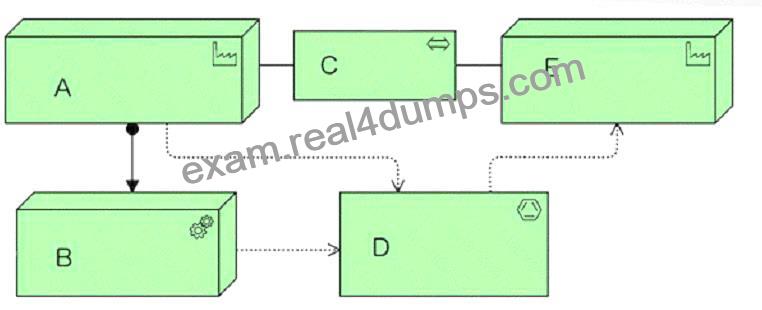

The diagram uses the ArchiMate notation for physical elements, which are used to model physical concepts like machines, physical installations, materials, and distribution networks. A is an equipment element, which represents a physical machine, tool, or instrument that can create, use, store, move, or transform materials. B is a material element, which represents tangible physical matter or energy. C is a distribution network element, which represents a physical network used to transport materials or energy.

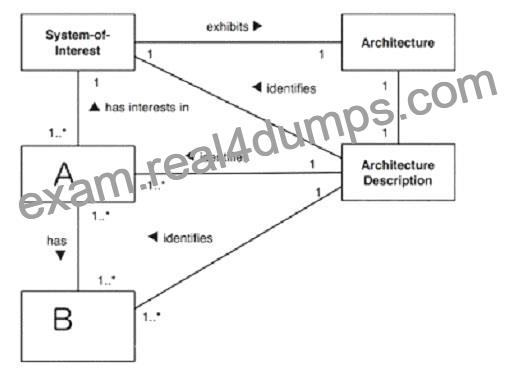

According to the conceptual model of architecture description from ISO/IEC 42010, an architecture view is a representation of a system from the perspective of a set of concerns. An architecture viewpoint is a specification of the conventions and rules for constructing and using an architecture view. A and B in the diagram correspond to these concepts respectively.
References: ISO/IEC/IEEE 42010: Conceptual Model1; ISO/IEC/IEEE 42010:2011 – Systems and software engineering – Architecture description2.

Comprehensive and Detailed in Depth Explanation:TheGroupingelement is acomposite elementin ArchiMate. Itcombines multiple elements into a single logical unitto simplify the representation of complex architectures.
UnlikeAggregation, which represents a relationship between a whole and its parts,Groupingallows the modeler to create arbitrary clusters of elements, regardless of their layer or type.
TheArchiMate 3.2 Specificationconfirms thatGroupingis a composite element used for structuring models and can include elements from different aspects and layers.
References:
* Archi User Guide
* ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

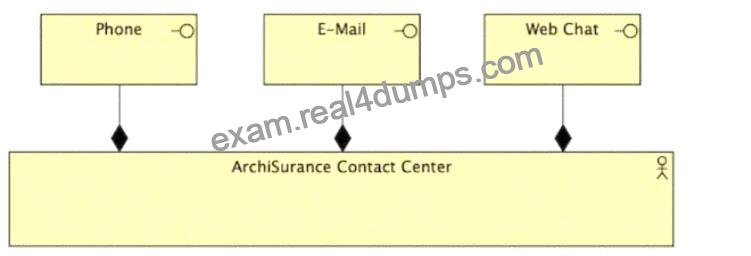

ThisArchiMate modelrepresents theArchiSurance Contact Centerand how it interacts with different communication channels.
* The elements labeled “Phone,” “E-Mail,” and “Web Chat” are connected to the Contact Center using a black diamond (Composition relationship).
* This indicates that thesecommunication channels serve as business interfaces for interacting with customers.
* A Business Interfacein ArchiMate represents a way in which services are provided toexternal parties, like customers, through defined means such as phone, email, or web chat.
Analysis of Answer Choices:
#A. The Contact Center has a business interaction with its customers using phone, e-mail, and web chat.
##Incorrect
* ABusiness Interactionin ArchiMate is used to modelcollaborationsbetween two or more roles or actors,not interfaces.
* This diagramfocuses on interfacesrather than interactions.
* ArchiMate 3.2 Specification, Section 6.3.2, states thatbusiness interactions require multiple active participants, which is not shown here.
#B. The Contact Center uses phone, e-mail, and web chat for internal communication.##Incorrect
* Thediagram does not indicate internal collaboration or communicationbut rathercustomer-facing interfaces.
* If this were internal communication, it would use Business Collaboration elements instead.
#C. The Contact Center has three business interfaces to serve customers: phone, e-mail, and web chat.
##Correct Answer
* ThePhone, E-Mail, and Web Chat elements represent Business Interfaces, which are the means through which services are delivered to customers.
* ArchiMate 3.2 Specification, Section 6.3.3, definesBusiness Interfaces as points of interaction between a Business Role and its environment, exactly fitting this diagram.
#D. The staff within the Contact Center collaborate using phone, e-mail, and web chat.##Incorrect
* Business Collaborationis not depicted in the diagram, andinternal collaboration would be modeled differentlyin ArchiMate.
* The focus here is oncustomer-facing services, not internal interactions.
#C. The Contact Center has three business interfaces to serve customers: phone, e-mail, and web chat.
References:
* ArchiMate 3.2 Specification: Sections 6.3.3 (Business Interface), 6.3.2 (Business Interaction).
* Archi User Guide: Modeling business interfaces and customer interactions.

According to the ArchiMate 3.2 Specification1, an application function describes the internal behavior of an application component, and an application component may be assigned to an application function, which means that the application component performs the application function. Therefore, the correct answer is A. Assignment. This relationship indicates that an instance of a technology function performs (part of) the behavior of an instance of an application function1.

Comprehensive and Detailed in Depth Explanation:AnInterfacein ArchiMate representsan access point through which elements interact with services. It can be aBusiness Interface, Application Interface, or Technology Interface.
Interfaces serve as aboundarybetween internal and external systems, allowing controlled interactions. The ArchiMate 3.2 Specificationexplicitly states thatinterfaces expose services to the environment.
References:
* Archi User Guide
* ArchiMate 3.2 Specification

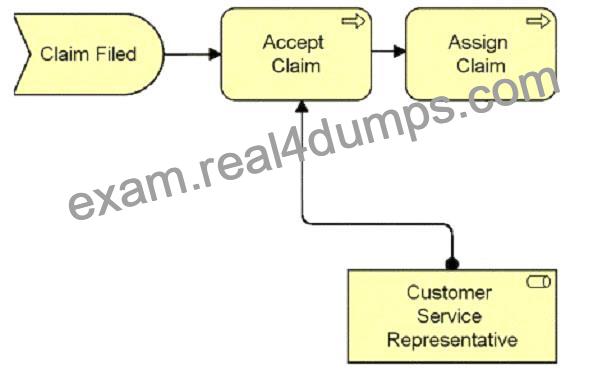

The correct answer is D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process. This is because the diagram shows a business event (Claim Filed) that initiates a business process (Accept Claim) which is performed by a business role (Customer Service Representative). The business process then triggers another business process (Assign Claim) which is also performed by the same business role. The diagram does not show any information flow or assignment relationships between the elements.

This is because the diagram shows the three main categories of relationships in ArchiMate: structural relationships, which model the static construction or composition of concepts; dependency relationships, which model how elements depend on or use other elements; and dynamic relationships, which model the temporal or causal connections between elements.

Based on the ArchiMate 3 documents or objectives, the generic metamodel defines two main types of elements: structure and behavior. Structure elements represent the structural concepts that model the static construction or composition of concepts of the same or different types. Behavior elements represent units of activity performed by one or more active structure elements.

Comprehensive and Detailed in Depth Explanation:In theApplication Layer metamodel, anApplication Serviceprovides functionality that operates onData Objects. TheAccessrelationship is used to model the reading, writing, creation, or deletionof aData Objectby anApplication Service.
This is becauseApplication Servicesdefine what applications offer, andData Objectsrepresent the structured data they process. TheArchiMate 3.2 Specificationexplicitly states thatApplication ServicesuseAccess relationships to interact withData Objects.
References:
* Archi User Guide
* ArchiMate 3.2 Specification

The diagram shows a work package, which is a grouping of behavior and/or structure elements that can be assigned to one or more performers. A work package can be used to model a project or a program, and it can contain deliverables, which are outcomes of the work package. The four elements (A, B, C, and D) are all deliverables that are part of the work package.

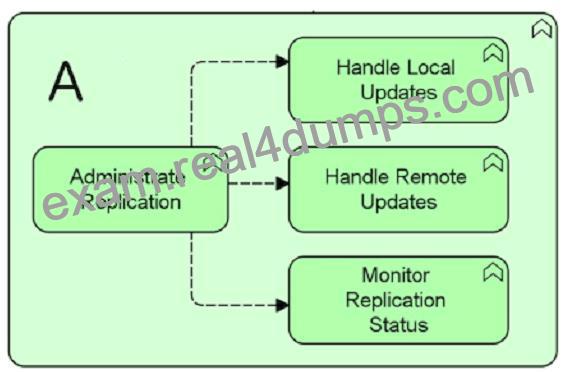

Based on the ArchiMate 3 documents or objectives, a technology function represents a collection of technology behavior that can be performed by a node. The diagram uses a composition relationship to indicate that technology function A consists of four other technology functions. The notation for a composition relationship is a solid line with a filled diamond at the end that points to the whole element. The diagram also uses an information flow relationship to indicate that information is exchanged from Administrate Replication to the other functions. The notation for an information flow relationship is a dashed line with an open arrowhead at the end that points to the direction of the flow.

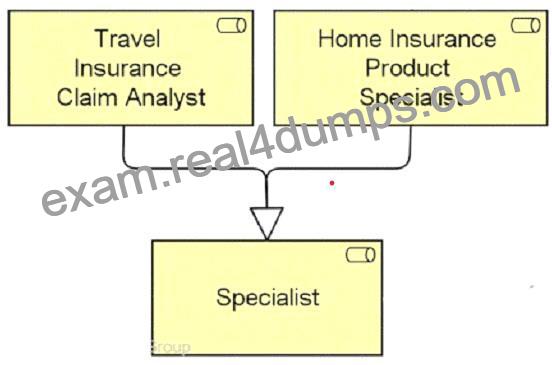

Based on the ArchiMate 3 documents or objectives, the diagram uses a specialization relationship to indicate that the two business roles Travel Insurance Claim Analyst and Home Insurance Product Specialist are more specific versions of the business role Specialist. A specialization relationship is a type of structural relationship that indicates that an object is a specialization of another object. The notation for a specialization relationship is a solid line with an empty triangle at the end that points to the more general element.
References: ArchiMate 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1; ArchiMate Specialization Relationship – ArchiMate Quick Guide – GitBook 2.

Comprehensive and Detailed In-Depth Explanation:

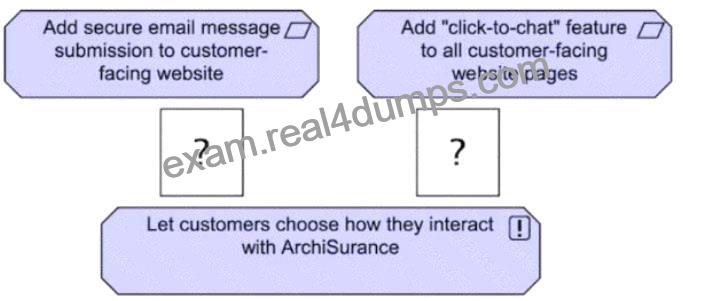

This diagram represents agoal-driven modelwhere thebottom element(Let customers choose how they interact with ArchiSurance) describes ahigh-level objective or outcome, while thetop elementsrepresent specific implementations that fulfill this objective.
InArchiMate 3.2, theRealization relationshipis used when:
* A higher-level concept (e.g., a goal or requirement) is realized by more specific lower-level elements.
* Concrete solutions (e.g., features or processes) implement or fulfill an abstract goal.
Understanding the Diagram:
* Thegoal is to let customers choose how they interact with ArchiSurance.
* The two elements at the top(“Add secure email message submission” and “Add click-to-chat feature”) are specific solutions that make this goal achievable.
* This fitsexactlywith theRealization relationship, where agoal or requirement is realized by specific actions.
Analysis of Answer Choices:
#A. Aggregation##Incorrect
* Aggregation represents a “whole-part” relationship, where elements can exist independently of the whole.
* Thetop elements are not separate, independent componentsbut rather implementations of the bottom element.
#B. Access##Incorrect
* Access relationships are used for information flow, such as reading, writing, or modifying data.
* This model is aboutrealizing a business objective, not accessing data.
#C. Realization##Correct Answer
* The bottom element is a higher-level goal, and the top elementsimplementorrealizeit.
* ArchiMate 3.2 Specification, Section 6.4.9, states thatRealization relationships link abstract concepts (like goals) to concrete implementations (like processes, services, or functions).
#D. Specialization##Incorrect
* Specialization relationships are used when one concept is a subtype of another.
* Thetop elements are not specialized versions of the bottom element; rather, theyimplementit.
C: Realization
References:
* ArchiMate 3.2 Specification: Section 6.4.9 (Realization Relationship).
* Archi User Guide: Understanding goal realization and requirement fulfillment.

Comprehensive and Detailed In-Depth Explanation:
TheTrigger relationshipin ArchiMatemodels causalitybetween behaviors. It represents acause-effect relationshipwhere one behaviorinitiates or enablesanother behavior to occur.
Understanding the Diagram:
* TheClaim Assessmentactivityleads toortriggerstheClaim Settlementactivity.
* The relationship is labeled”decision,”implying that the completion ofClaim Assessmentdetermines whether aClaim Settlementprocess should be initiated.
* InArchiMate 3.2, aTrigger relationshipis represented with adashed arrow (#)as seen in the diagram.
Analysis of Answer Choices:
#A. Flow##Incorrect
* Flow relationshipsrepresent thetransfer of information, data, or resourcesrather than acausal effect.
* ArchiMate 3.2 Specification, Section 6.4.4, states that aFlowrelationship is aboutcommunication or material flow, which is not the case here.
#B. Influence##Incorrect
* Influence relationshipsindicate that one element affects anotherin a non-deterministic way(e.g., policies, motivations, or strategies).
* ArchiMate 3.2 Specification, Section 6.4.5, states thatInfluencedoes not necessarily imply direct causation.
* Since “decision” suggests aclear causal dependency,Triggeris the better choice.
#C. Trigger##Correct Answer
* Trigger relationshipsexplicitly show that one behaviorinitiatesorcausesanother behavior.
* ArchiMate 3.2 Specification, Section 6.4.3, states that aTrigger relationship models a causal dependency between two behaviors.
* A Claim Assessment leading to a Claim Settlement fits this pattern perfectly.
#D. Access##Incorrect
* Access relationshipsdescribe how abehavioral element reads, writes, or manipulates an object(e.g., data access).
* ArchiMate 3.2 Specification, Section 6.4.7, states thatAccess is used for information retrieval or modification, which is not relevant here#C. Trigger References:
* ArchiMate 3.2 Specification: Sections 6.4.3 (Trigger), 6.4.4 (Flow), 6.4.5 (Influence), and 6.4.7 (Access).
* Archi User Guide: Behavioral relationships and dependency modeling.
